Low Tech High Rise Regensburger Straße

KfW Efficiency House 55 with 36 apartments, offices, retail and underground parking
as part of the >Regensburg Quarter Nuremberg
Regensburger Straße 340, D-90480 Nürnberg

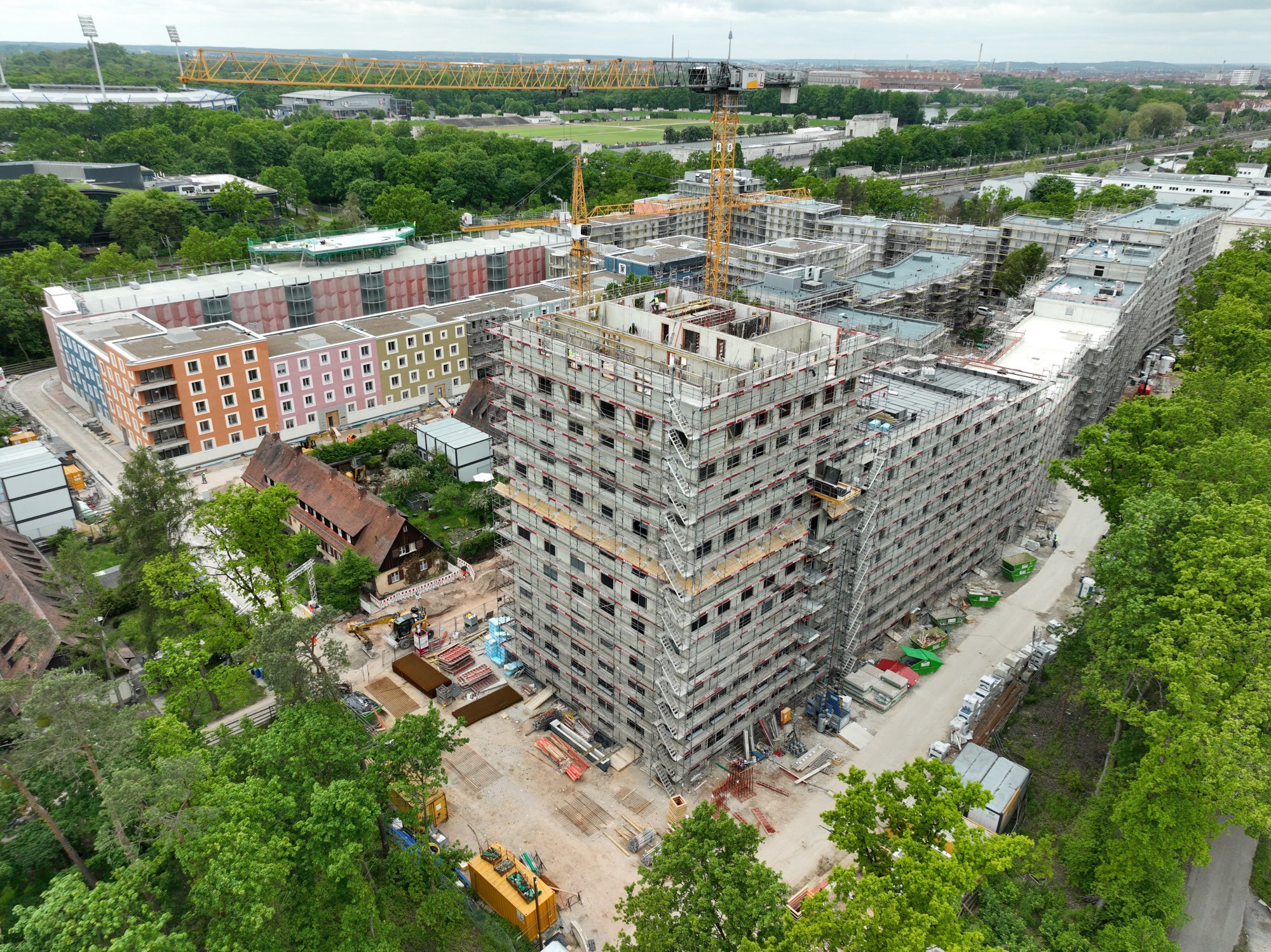

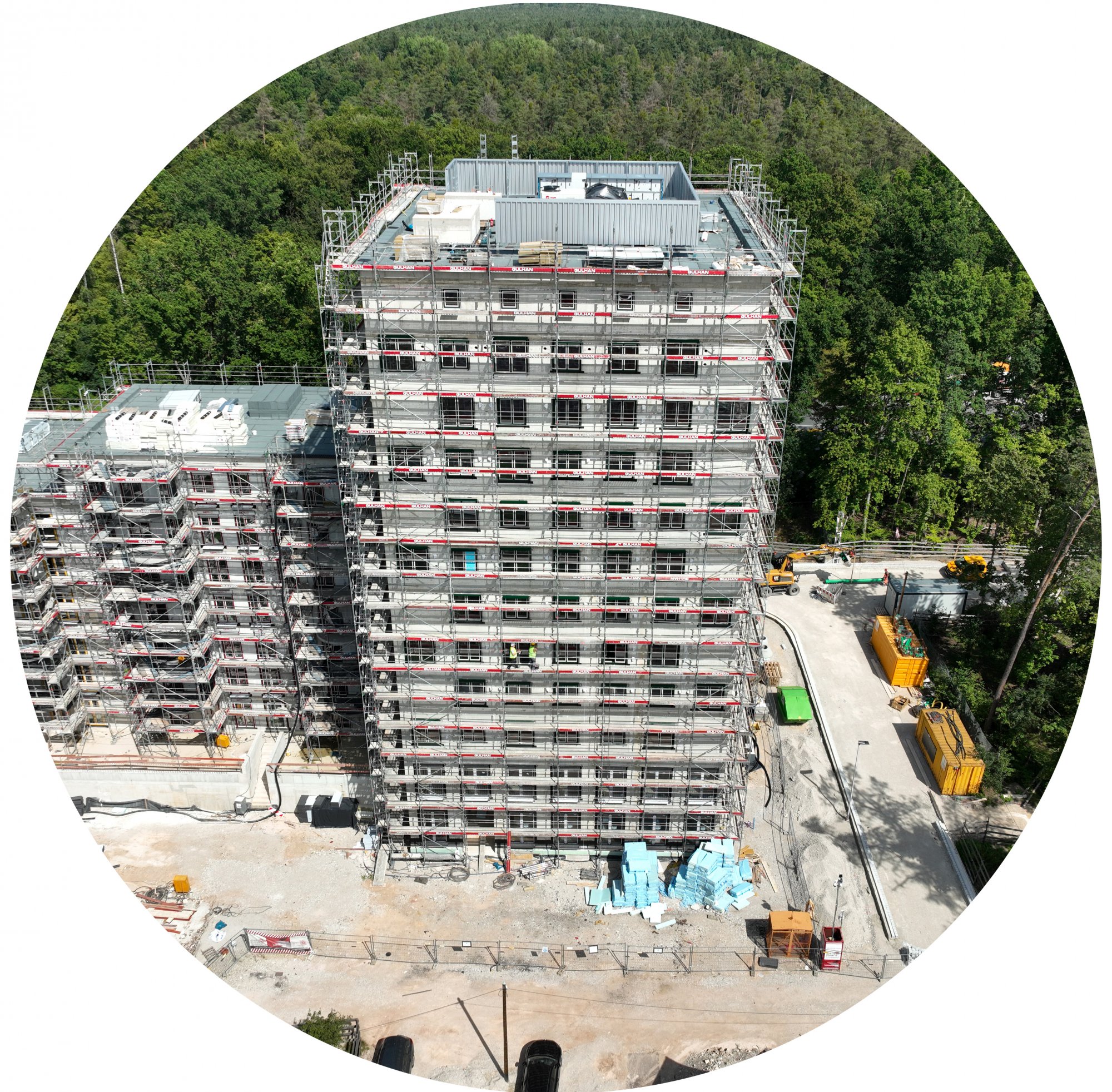

Building planning and realization 2018-2024, under construction since 2021
Commissioned by SW Nürnberg: HOAI §34 LPh 1-4, master detailing
Commissioned by Max Bögl: HOAI §34 LPh 5

Client: SW Nürnberg
Project manager: GCA, Nuremberg
General contractor: Max Bögl, Nuremberg
Landscape architects: Topos, Berlin
Tenders and site supervision: gapp, Munich
Structural engineer: Peters Schüßler Sperr, Nuremberg
HVAC: Ingenieurbüro Koppe und TGA-X, Nuremberg
Fire Consultant: Ingenieurbüro Teucke, Nuremberg
Building Physics: Basic, Gundelsheim
Infrastructure: Gauff Engineering, Nuremberg

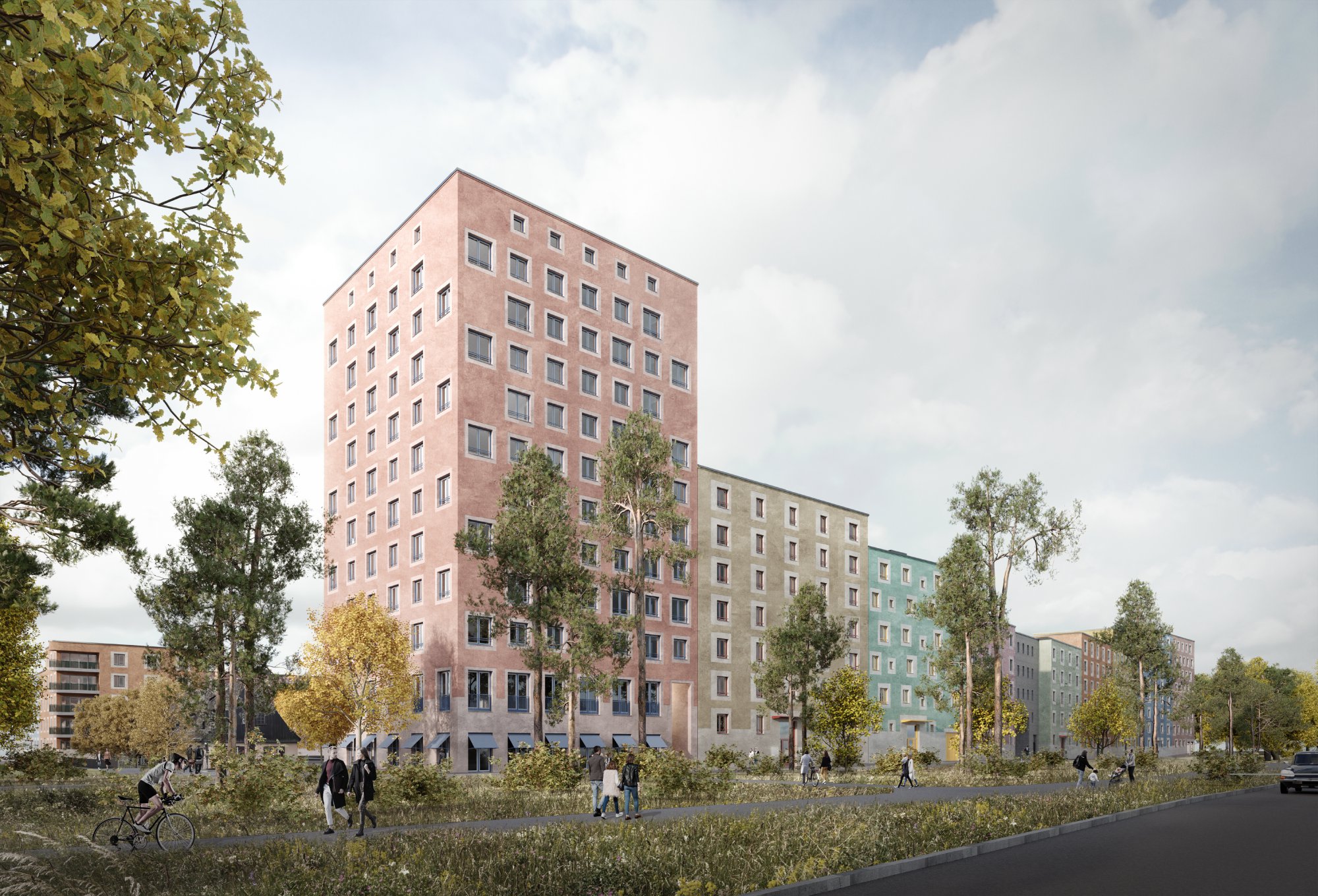

Visualization: Georg Hana, Berlin

Team: Armin Behles (PM), Giulia Cappello, Jenny Dittrich (PM), Jasper Jochimsen, Iva Kocheva (PM), Sebastian Nordmeyer, Anatol Rettberg, Fabian Scholtz, Sarah Strohbach, Mathias Wünsche

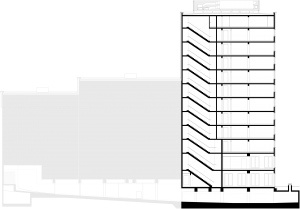

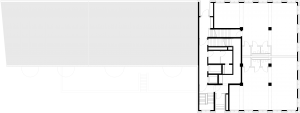

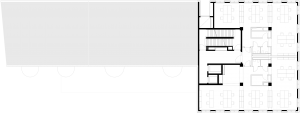

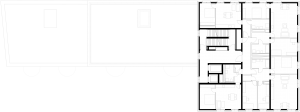

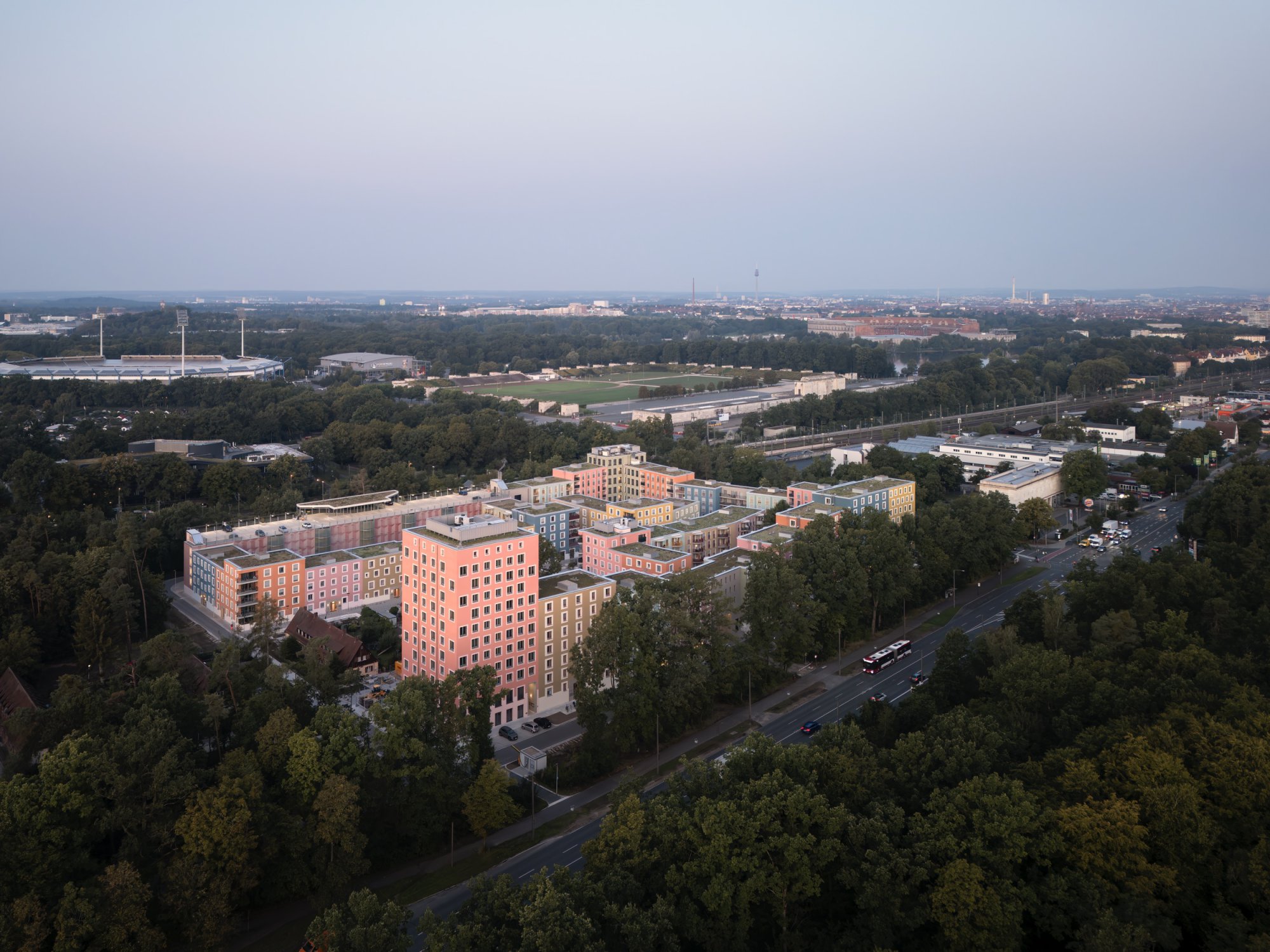

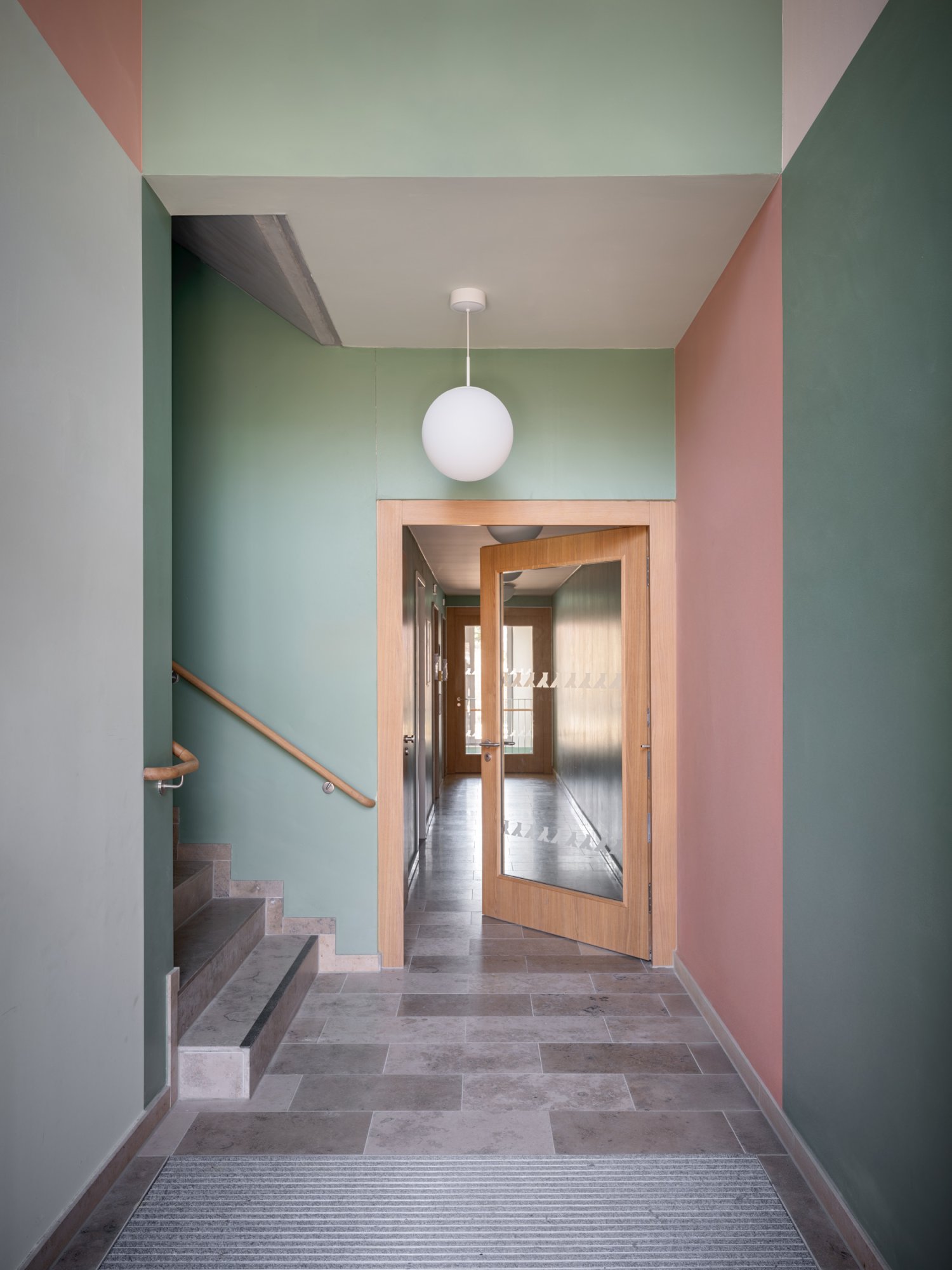

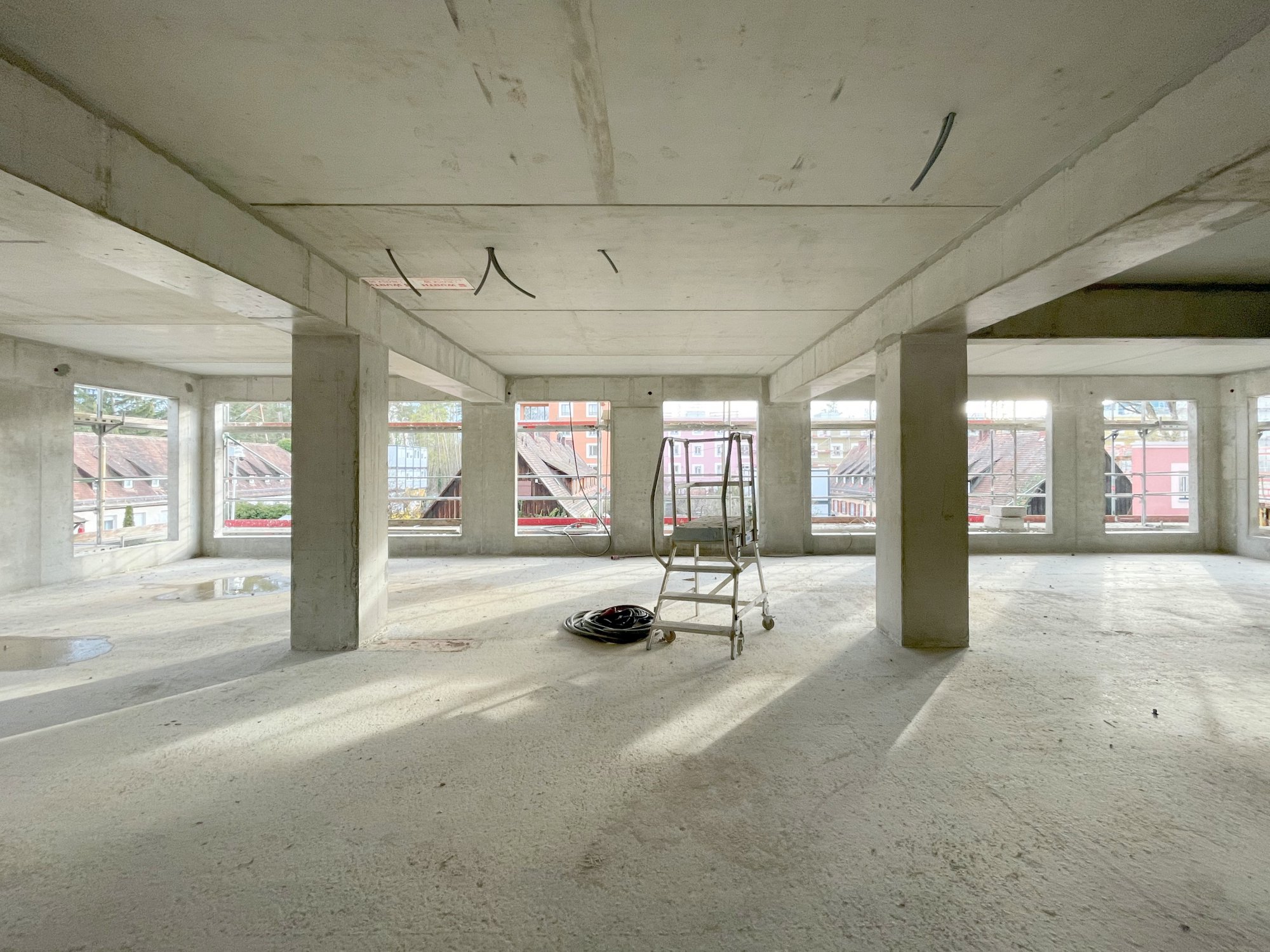

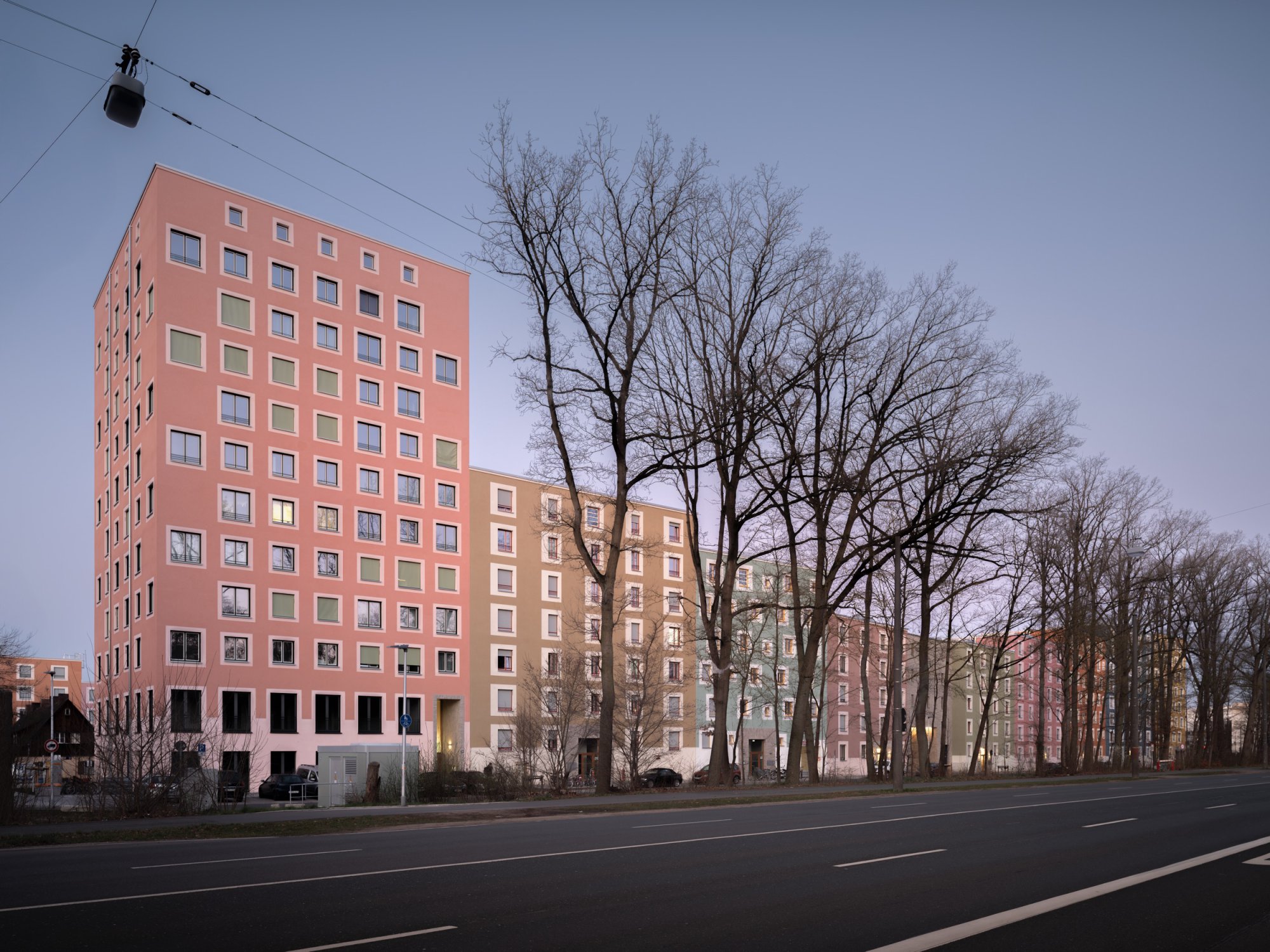

At the eastern entrance to the city and on a level with the two Grundig high-rise buildings south of the railway line, the high-rise marks the start of the new Regensburg district. With 11 full floors and a roof space, it consistently exploits the legal possibilities of the property and the special features of the Bavarian high-rise building guidelines. Commercial premises are located on the ground floor and first floor. Above there are nine floors, each with four apartments. The attic contains storage rooms; due to its low height it does not count as a full floor. The building is just under the 30 m mark. Instead of a safety stairwell, two internal intertwined stairways and a dry riser can be used. Elevators and stairwells share common, naturally ventilated vestibules. Pressure ventilation of the stairwells, the anterooms and the firefighters lift can be dispensed with. The high-rise is realised with a minimum of building technology and development costs.

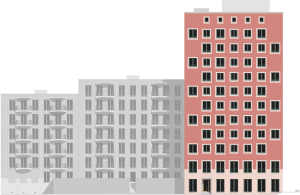

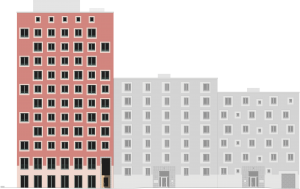

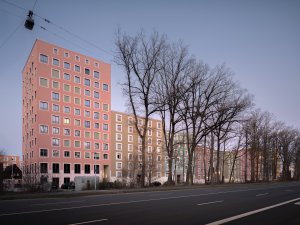

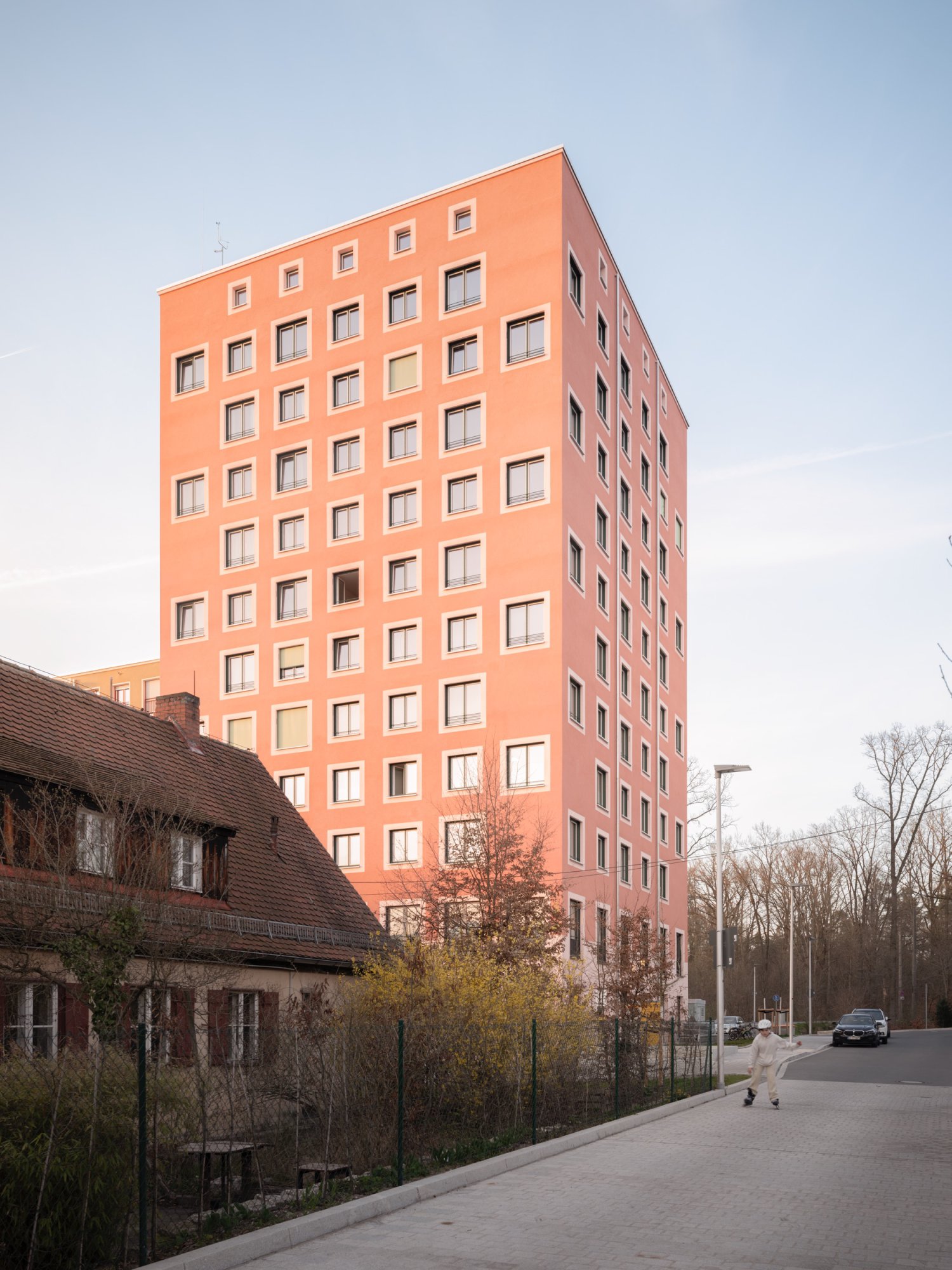

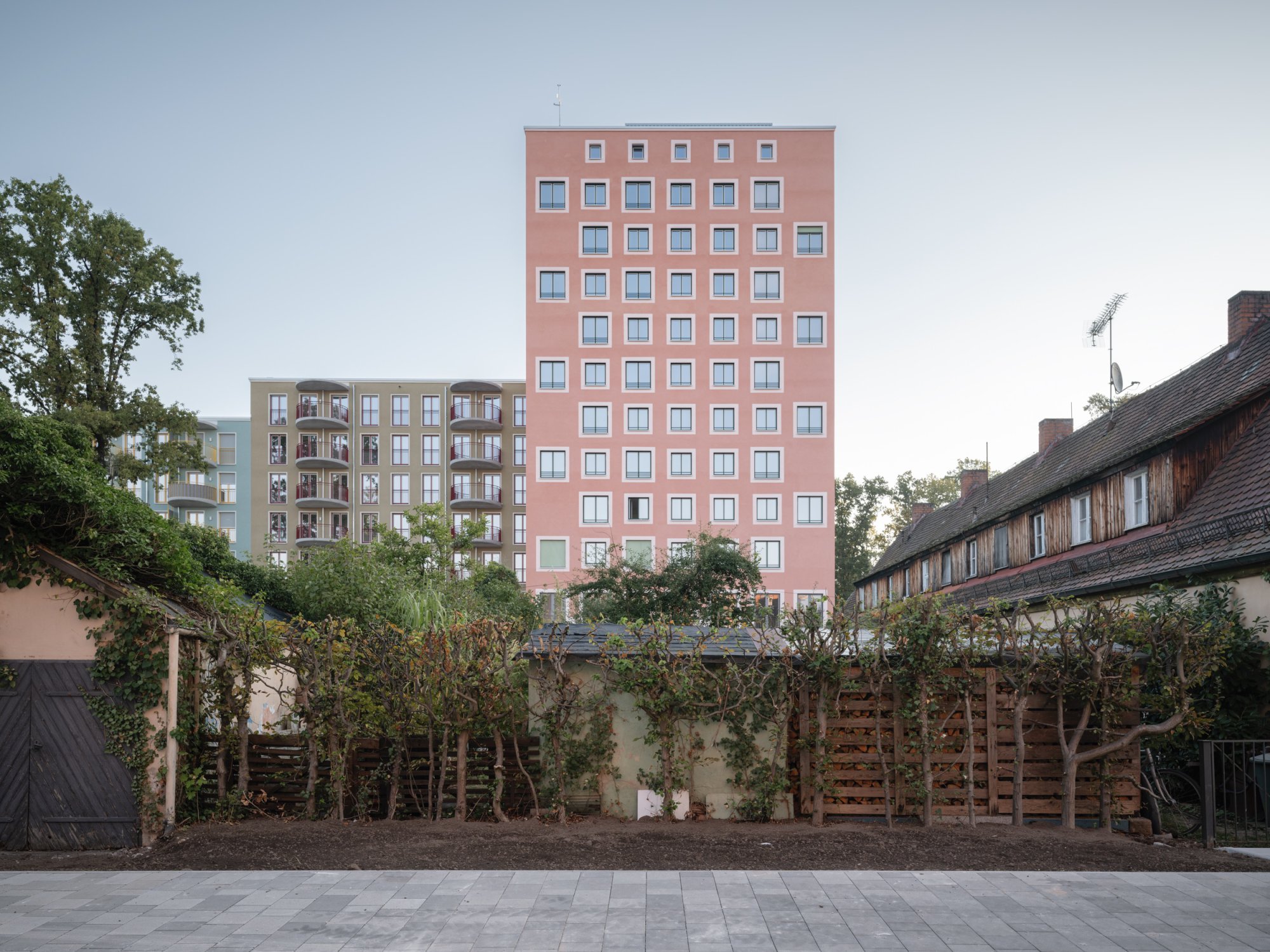

The facade is given a mineral ETICS with a colored high-quality scratch plaster and wide flanges around the windows. To prevent vertical fire flashover, 1 m high, closed parapets are required between windows. This provokes a change between smaller and larger window formats. Larger openings in the base and the small windows in the attic lead to a vertical progression.
